Automated experiments in Machine learning

corifeanu

Machine Learning ecosystem

Rating & reviews (0 reviews)

Study Notes

Automated machine learning capabilities allows to determine the best performing algorithm for your data.

Classification
Regression
Time Series Forecasting

Process

Select algorithm or algorithms used in experiment.
1. Preprocessing and featurization
2. Scaling and normalization
Run automated machine learning experiments
1. Configure an automated machine learning experiment
2. Specify data for training
3. Specify the primary metric
Submit an automated machine learning experiment
Retrieve the best run and its model
Explore preprocessing steps

To run this, you need azureml-train-automl
Check :

pip show azureml-train-automl

Automl is diferent from running an experiment.
There is no script to be executed (pipelines steps)
There is a configuration file only (automl config)
We need to set workspace, set dataset and compute anyway.

Specific is AutoMLConfigClass
Represents configuration for submitting an automated ML experiment in Azure Machine Learning
This configuration object contains and persists the parametersfor configuring the experiment run, as well asthe training data to be used at run time.

Feb 2023 -below will work with Python version >=3.5,<3.8

Set workspace

import azureml.core

from azureml.core import Workspace

# Load the workspace from the saved config file

ws = Workspace.from_config()

print('Ready to use Azure ML {} to work with {}'.format(azureml.core.VERSION, ws.name))

Prepare data

from azureml.core import Dataset

default_ds = ws.get_default_datastore()

if 'diabetes dataset' not in ws.datasets:

default_ds.upload_files(files=['./data/diabetes.csv', './data/diabetes2.csv'], # Upload the diabetes csv files in /data

target_path='diabetes-data/', # Put it in a folder path in the datastore

overwrite=True, # Replace existing files of the same name

show_progress=True)

#Create a tabular dataset from the path on the datastore (this may take a short while)

tab_data_set = Dataset.Tabular.from_delimited_files(path=(default_ds, 'diabetes-data/*.csv'))

# Register the tabular dataset

try:

tab_data_set = tab_data_set.register(workspace=ws,

name='diabetes dataset',

description='diabetes data',

tags = {'format':'CSV'},

create_new_version=True)

print('Dataset registered.')

except Exception as ex:

print(ex)

else:

print('Dataset already registered.')

# Split the dataset into training and validation subsets

diabetes_ds = ws.datasets.get("diabetes dataset")

train_ds, test_ds = diabetes_ds.random_split(percentage=0.7, seed=123)

print("Data ready!")

Prepare compute

from azureml.core.compute import ComputeTarget, AmlCompute
from azureml.core.compute_target import ComputeTargetException

cluster_name = "your-compute-cluster"

try:
# Check for existing compute target
training_cluster = ComputeTarget(workspace=ws, name=cluster_name)
print('Found existing cluster, use it.')
except ComputeTargetException:
# If it doesn't already exist, create it
try:
compute_config = AmlCompute.provisioning_configuration(vm_size='STANDARD_DS11_V2', max_nodes=2)
training_cluster = ComputeTarget.create(ws, cluster_name, compute_config)
training_cluster.wait_for_completion(show_output=True)
except Exception as ex:
print(ex)

Suppose you select: Classification algorithm.
Check what metrics are available:

import azureml.train.automl.utilities as automl_utils

for metric in automl_utils.get_primary_metrics('classification'):

print(metric)

result:
AUC_weighted
average_precision_score_weighted
norm_macro_recall
precision_score_weighted
accuracy
Restrict: 4 iterations to reduce the amount of time taken.

from azureml.train.automl import AutoMLConfig

automl_config = AutoMLConfig(name='Automated ML Experiment',

task='classification',

compute_target=training_cluster,

training_data = train_ds,

validation_data = test_ds,

label_column_name='Diabetic',

iterations=4,

primary_metric = 'AUC_weighted',

max_concurrent_iterations=2,

featurization='auto'

)

print("Ready for Auto ML run.")

Submit theexperiment.

from azureml.core.experiment import Experiment
from azureml.widgets import RunDetails

print('Submitting Auto ML experiment...')
automl_experiment = Experiment(ws, 'mslearn-diabetes-automl-sdk')
automl_run = automl_experiment.submit(automl_config)
RunDetails(automl_run).show()
automl_run.wait_for_completion(show_output=True)

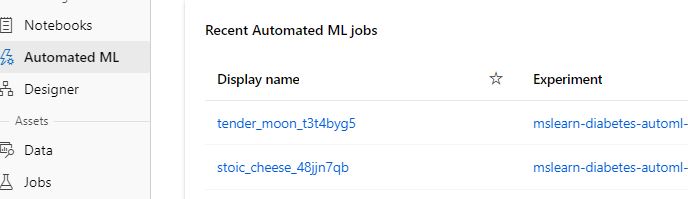

Once submitted you will find it in Azure ML studio:

You will notice cluster as well is getting busy.

Retrieve all children runs.

for run in automl_run.get_children():
print('Run ID', run.id)
for metric in run.get_metrics():
print('', run.get_metrics(metric))

Get the best run:

best_run, fitted_model = automl_run.get_output()
print(best_run)
print(' Best Model Definition:')
print(fitted_model)
print(' Best Run Transformations:')
for step in fitted_model.named_steps:
print(step)
print(' Best Run Metrics:')
best_run_metrics = best_run.get_metrics()
for metric_name in best_run_metrics:
metric = best_run_metrics[metric_name]
print(metric_name, metric)

best_run.register_model(model_path='outputs/model.pkl', model_name='diabetes_model',
tags={'Training context':'Auto ML'},
properties={'AUC': best_run_metrics['AUC_weighted'], 'Accuracy': best_run_metrics['accuracy']})

# List registered models
for model in Model.list(ws):
print(model.name, 'version:', model.version)
for tag_name in model.tags:
tag = model.tags[tag_name]
print ('',tag_name, ':', tag)
for prop_name in model.properties:
prop = model.properties[prop_name]
print ('',prop_name, ':', prop)
print(' ')

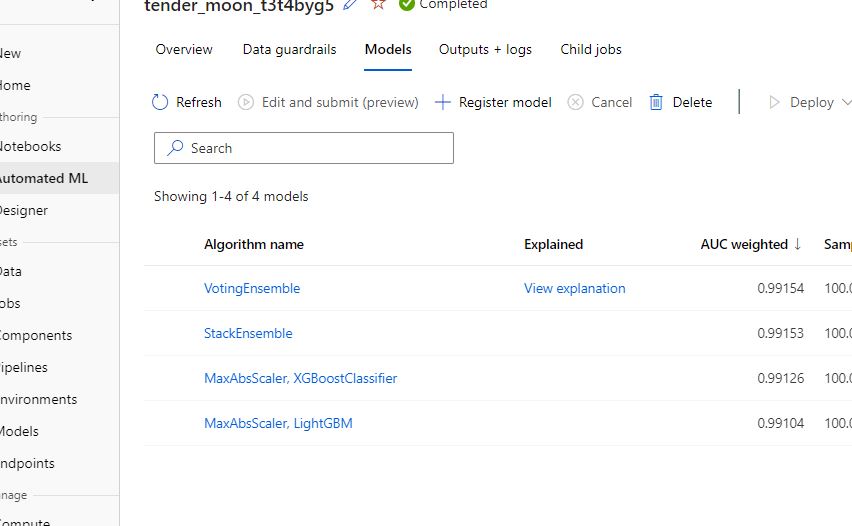

In Azure ML Studio you will get all details about run, best model ane explanations
